Aviation Investigation Report A17P0149

Loss of control and collision with terrain
ASAP Avionics Services Ltd.
Robinson R44 Astro, C-FMBO
Campbell River, British Columbia

The Transportation Safety Board of Canada (TSB) investigated this occurrence for the purpose of advancing transportation safety. It is not the function of the Board to assign fault or determine civil or criminal liability. This report is not created for use in the context of legal, disciplinary or other proceedings. See Ownership and use of content.

Table of contents

    History of the flight

    On 01 October 2017, at 1530,Footnote 1 the ASAP Avionics Services Ltd. Robinson R44 Astro helicopter (registration C-FMBO, serial number 0106) (Figure 1), departed from the Campbell River Airport (CYBL), British Columbia, during daylight hours, with 2 pilots on board. The purpose of the flight was to allow the pilot in the right-hand seat to demonstrate his ability to conduct slow flight manoeuvres for potential future employment.

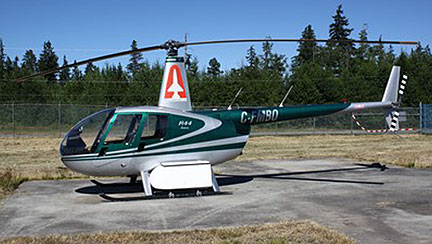

    Figure 1. C-FMBO (Source: Willy Dahmen)
    Robinson R44 Astro, C-FMBO

    At 1548, after conducting a number of flight exercises about 5 nautical miles (nm) to the northwest of the airport, the flight crew contacted the NAV CANADA flight service station at CYBL and informed them that the helicopter would be returning to the airport infield area west of the threshold of Runway 12 (Figure 2) to conduct hover exercises.

    At 1553, while on final approach to CYBL, control of the helicopter was transferred from the right-seat pilot to the left-seat pilot for the demonstration of a manoeuvre. Shortly after the control transfer, while in close proximity to the ground at slow speed, the helicopter began to spin uncommanded to the right. After several revolutions, it travelled in a northwesterly direction away from the airport. During that time, it attained an altitude of approximately 150 feet above ground level (AGL) and approximately 85 knots groundspeed.

    At approximately 1555, the helicopter collided with trees about 1.2 nm northwest of Runway 12. The damage to the helicopter, trees, and terrain indicated that the aircraft had been on a relatively level flight path when it first struck the trees. It had then pitched to a steep nose-down attitude and struck the ground in a vertical profile. Analysis of the wreckage indicated that the rotor had been turning during the first impact with the trees and was still turning, though at a slower rate, on final impact with the terrain. After coming to rest, the helicopter's engine continued to run for an undetermined period. The left-seat pilot was fatally injured, and the right-seat pilot was seriously injured. The helicopter was destroyed. There was no post-impact fire.

    At 1656, approximately 1 hour after the accident, the surviving pilot was able to contact 911 on his personal cellphone, and a search was initiated.

    At 1712, an emergency locator transmitter (ELT) signal was detected by the flight service station.

    At 1806, search-and-rescue personnel arrived on scene. The surviving pilot was evacuated from the accident site at 1948.

    Figure 2. Depiction of C-FMBO's flight path based on aircraft global positioning system data, showing the approach to CYBL, the area where the loss of control occurred, and the accident site (Source: Google Earth, with TSB annotations)
    Depiction of C-FMBO's flight path based on aircraft global positioning system data

    Pilot information

    Both pilots were certified and qualified for the flight.

    Table 1. Personnel information
      Left-seat pilot Right-seat pilot
    Type of licence Airline transport pilot licence – helicopter Commercial licence – helicopter
    Medical expiry date 01 June 2018 01 August 2018
    Total flying hours 3116 122
    Type ratings RH22, RH44, BH06, MBK7 RH44, BH06, HU30
    Total hours on type 738 27
    Hours, last 7 days 1 0
    Hours, last 30 days 4.8 0
    Hours, last 90 days 24.6 0

    Meteorological information

    The aviation routine weather report (METAR) for CYBL at 1500 indicated the following: winds 300° true (T) at 9 knots, gusting to 15 knots, varying from 270°T to 340°T; visibility 30 statute miles; few clouds at 4000 feet AGL; temperature 18 °C; dew point 5 °C; and altimeter setting 30.14 inches of mercury.

    Aircraft information

    The helicopter was certified, equipped, and maintained in accordance with existing regulations and approved procedures. It had no known deficiencies and was being operated within its weight-and-balance and centre-of-gravity limits. The helicopter was not equipped with a flight data recorder or cockpit voice recorder, nor were these required by regulation.

    Table 2. Helicopter information
    Manufacturer Robinson Helicopter Company
    Type, model, and registration R44, Astro, C-FMBO
    Year of manufacture 1994
    Serial number 0106
    Certificate of airworthiness 13 January 2007
    Total airframe time 2779.1
    Engine type (number of engines) Lycoming O-540-F1B5 (1)
    Maximum allowable take-off weight 1088.62 kg

    Technical examination

    A comprehensive laboratory examination of C-FMBO was performed. Representatives from the helicopter manufacturer (Robinson Helicopters) and engine manufacturer (Lycoming Engines) were present for the examination, in addition to investigators from the TSB and the U.S. National Transportation Safety Board.

    Flight control and drivetrain

    Flight control continuity was confirmed, and none of the flight control components showed signs of disconnect or premature failure. The main and tail rotor gearboxes, as well as the engine freewheel unit, were examined, and no malfunction or pre-existing anomaly was noted.

    Engine

    The engine was found to be capable of producing full power and was within normal operating specifications for its type.

    Engine–to–main transmission coupling

    To transfer engine power to the main transmission, the R44 helicopter employs 4 double-V drive belts running around 2 sheaves—the lower, "driving" sheave and the upper, "driven" sheave.

    An examination of the drive belts showed evidence of slippage and wear. One of the belts had a considerable amount of glazing and heat damage, with the web between the belts separated in areas. Another belt was damaged more significantly, with one of the strands burned completely through and the remaining strand distorted and inconsistent. The damage observed on the belts is consistent with the belts having moved from their proper location on the sheave and subsequently being subject to loading either on the sheave or in contact with rotating parts. However, the investigation was unable to determine how much, if any, of the damage occurred prior to the impact with terrain.

    Engine-cooling fan

    The engine is cooled by means of an engine-cooling fan, which is attached to the engine by a taper-fit between the end of the drive shaft and the socket of the fan. Examination of the tapered surface of the shaft and bearing assembly showed some significant gouging damage. It was also noted that the bolts holding the fan wheel to the socket hub were loose. Further examination revealed that the fan wheel bolt holes were elongated. The investigation was unable to determine if the loose bolts and elongated holes contributed to the occurrence.

    Emergency locator transmitter

    On examination, the ELT was found to be intact. The unit had activated and emitted a signal that was detected by the CYBL flight service station approximately 80 minutes after the accident.

    Conclusion

    In this accident, the left-seat pilot was fatally injured, and the right-seat pilot was seriously injured. Both pilots were certified and qualified for the flight. The weather conditions were not considered a factor in the accident. The aircraft was maintained and certified in accordance with existing regulations.

    The cause of the loss of control and collision with terrain could not be determined. As this and other occurrences have demonstrated, when cockpit or data recordings are not available to an investigation, the identification and communication of safety deficiencies to advance transportation safety may be precluded.

    The Board has previously recommended that

    the Department of Transport require the mandatory installation of lightweight flight recording systems by commercial operators and private operators not currently required to carry these systems.
    Transportation Safety Recommendation A18-01

    This concludes the TSB's limited-scope investigation into this occurrence. The Board authorized the release of this investigation report on 06 June 2018. It was officially released on 11 June 2018.
