Typical CB "Trip-Curve" chart

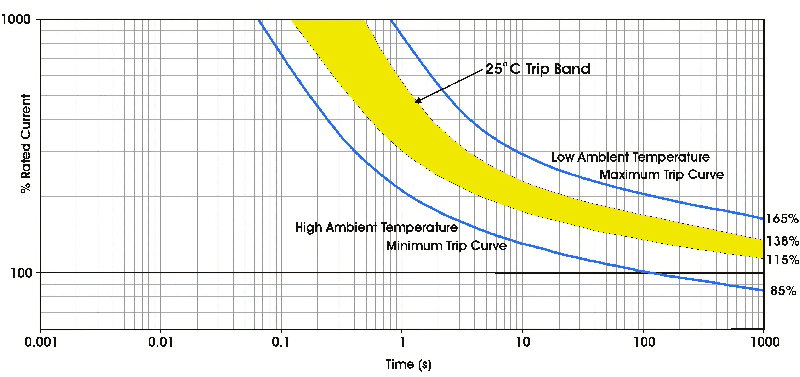

This page provides access to a "trip-curve" chart for a typical CB (excerpted from Texas Instruments Klixon® specification), which depicts the relationship between the amount of current that can pass through a CB and the amount of time until the CB opens.
